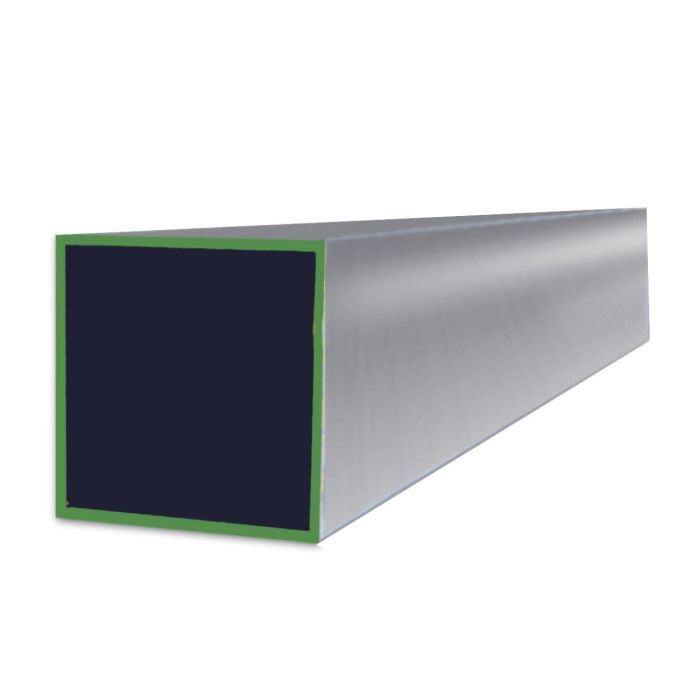

Stainless Steel Square Tube 304 - 1-1/2 Inches X 18 Gauge
Stainless Steel Square Tube 304 - 1-1/2" x 0.049" Wall x 20'
This 1-1/2" x 0.049" wall 304 stainless steel square tube meets ASTM A269 specifications, offering an excellent blend of strength and corrosion resistance. With 73,200 PSI tensile strength, it is a reliable choice for structural frames, railings, and architectural trim. In stock Los Angeles.
- 304 Stainless Steel Construction
- ASTM A269 Certified
- 73,200 PSI Tensile Strength
- Excellent Corrosion Resistance & Weldability
Type 304 is the most widely used austenitic stainless steel, containing 18% chromium and 8% nickel for superior resistance to corrosion and oxidation. Manufactured in an annealed condition to ASTM A269 standards, it offers excellent formability and can be easily welded using common techniques. This grade is non-magnetic and cannot be hardened by heat treatment, providing a durable, low-maintenance material solution.
As a medium-sized profile, this 1-1/2" square tube delivers an effective balance of strength, weight, and stability. It is frequently specified for fabricating equipment frames, handrails, support posts, and roll cages where moderate load-bearing capacity and clean aesthetic lines are essential for the final assembly.
Specifications
- Material: 304 Stainless Steel
- Standards: ASTM A269
- Strength/Tensile: 73,200 PSI
- Dimensions: 1-1/2" x 1-1/2" Side, 0.049" (18 ga) Wall, 20' Length
- Finish: Annealed, Mill Finish
- Certifications: MTR Available
Applications
- Architectural & Construction: Handrails, guardrails, and support posts - Excellent corrosion resistance and can be polished for a clean look.
- Industrial Framing: Equipment frames, conveyor stands, and workbenches - Good strength-to-weight ratio and easy fabrication.
- Automotive & Racing: Roll cages, custom chassis components, and support brackets - Weldable and strong for safety structures.
- Food & Beverage: Framework for processing equipment and carts - Resists corrosion from food acids and cleaning agents.
Target Users
Fabricators, welders, architects, and maintenance engineers rely on 304 Square Tube for its versatility and durability in commercial and industrial projects throughout the Los Angeles area.
Finish Options
This product comes standard with a mill finish, which may have minor surface imperfections from the manufacturing process. For applications requiring a specific aesthetic, it can be polished to various finishes, including a #4 satin (180 grit) or a #8 mirror finish. Contact our Los Angeles sales team for custom finish inquiries.
How to Measure
Square tube is measured by its outer side dimensions (A x B), wall thickness (C), and overall length. For example, this tube has equal 1-1/2" sides and a wall thickness of 0.049 inches.
Example: To order this tube, specify "304 Stainless Square Tube, 1-1/2" x 0.049" Wall x 20' Length".
Order Checklist
- Product name and required dimensions (1-1/2" x 0.049" x 20')
- Material specification and quantity
- Confirm grade (304) meets requirements
- Surface finish requirements (Mill Finish)
- Certifications required (Mill Test Report)
- Special handling or delivery requirements
Quick Facts
- Product
- Stainless Steel Square Tube 304 - 1-1/2" x 18 Gauge
- Material
- 304 Stainless Steel
- Standards
- ASTM A269
- Key Properties
- 73,200 PSI tensile, Excellent Weldability, Excellent Corrosion Resistance
- Primary Applications
- Handrails, equipment frames, support posts
- Location
- Los Angeles warehouse - Same-day pickup available
Available Sizes
We stock 304 Stainless Square Tube in sizes from 1/2" to 4" and in various wall thicknesses. This 1-1/2" x 0.049" wall size is available for immediate pickup in Los Angeles.
Custom cutting services available.
