Hot Rolled Channels

Hot Rolled Channels

A shape is classed a “Bar Size Shape” when its greatest dimension (length excluded) is less than 3 inches. It is a “Structural Shape” when at least one of its dimensions (length excluded) is 3 inches or greater.

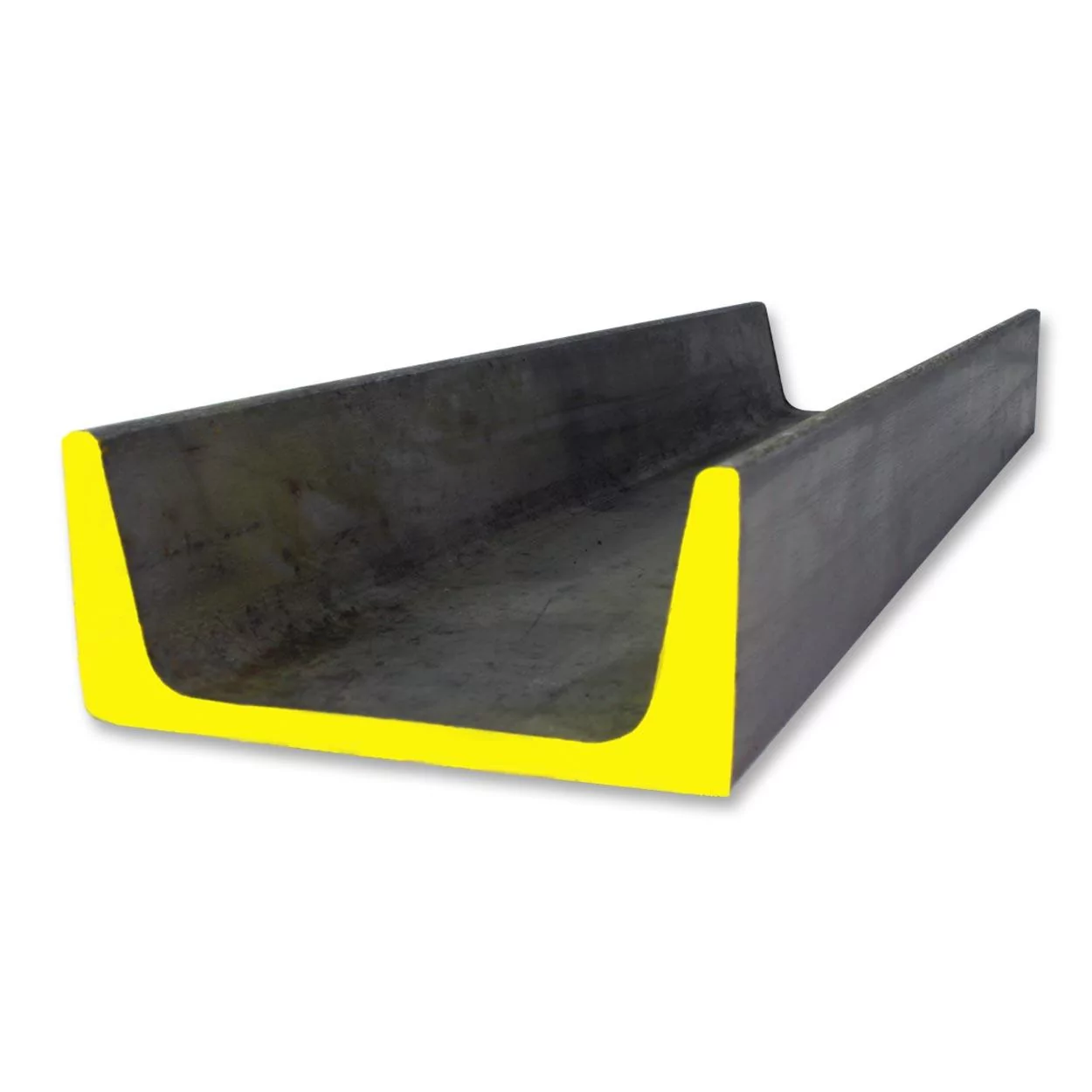

Hot Rolled Channel also known as C-shape or U-shape are mostly used for structural applications. It is a low carbon grade, having good over-all mechanical properties. It is easy to fabricate by the usual structural methods, such as hot forming and welding.

APPLICATIONS
ASTM A 36 UNS K02600

APPLICATIONS
This material is used for general purpose structural and miscellaneous non-critical applications that involve mild hot forming, punching, and welding. Such applications include parts for general machinery, agricultural implements, transportations equipment, etc. It is used where seams and other surface imperfections may be tolerated.

WELDABILITY
This material is easily welded by all welding processes, and the resultant welds and joints are of extremely high quality. The grade of welding rod used depends on welding conditions, such as thickness of section, design, service requirements, etc.

Stock Number

Item Size & Description

Weight (lbs./ft.)

Click! Arrow to Select Size

Qty

Price

Select Item

HRCH1

Hot Rolled Channels - Bar Sizes - 1 Inch X 1/2 Inch X 1/8 Inch

16.8000

Select a Size
HRCH1.25

Hot Rolled Channels - Bar Sizes - 1-1/4 Inch X 1/2 Inch X 1/8 Inch

20.2000

Select a Size
HRCH1.50X.50

Hot Rolled Channels - Bar Sizes - 1-1/2 Inch X 1/2 Inch X 1/8 Inch

22.4000

Select a Size
HRCH2-2

Hot Rolled Channels - Bar Sizes - 2 Inch X 1 Inch X 1/8 Inch

35.6000

Select a Size
HRCH2-3

Hot Rolled Channels - Bar Sizes - 2 Inch X 1 Inch X 3/16 Inch

46.4000

Select a Size
HRCH3X4.1

Hot Rolled Channels - Standard Size - C3 X 4.1

82.0000

Select a Size
HRCH3X5.0

Hot Rolled Channels - Standard Size - C3 X 5.0

100.0000

Select a Size
HRCH4X5.4

Hot Rolled Channels - Standard Size - C4 X 5.4

108.0000

Select a Size
HRCH5X6.7

Hot Rolled Channels - Standard Size - C5 X 6.7

134.0000

Select a Size
HRCH6X10.5

Hot Rolled Channels - Standard Size - C6 X 10.5

210.0000

Select a Size
