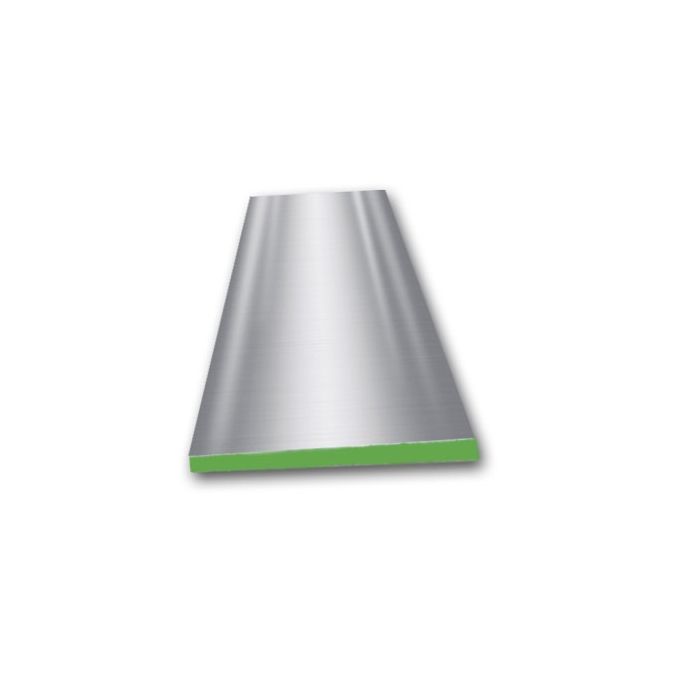

Stainless Steel Flat Bar 304 - 3/4 Inch X 1 Inch
304 Stainless Steel Flat Bar - 3/4" x 1"
This 3/4" x 1" 304 Stainless Steel Flat Bar is an austenitic chromium-nickel alloy known for its excellent corrosion resistance and weldability. Conforming to ASTM A276, it provides 73,200 PSI tensile strength, making it ideal for structural supports and food-grade equipment. In stock Los Angeles.
- 304 Stainless Steel Construction
- ASTM A276 Certified
- 73,200 PSI Tensile Strength
- Excellent Corrosion Resistance
Type 304 stainless steel is the most widely used austenitic grade, often called "18-8" for its 18% chromium and 8% nickel content. This composition provides outstanding resistance to atmospheric and chemical corrosives. Supplied in an annealed condition, it is non-magnetic and offers excellent ductility and formability. This flat bar conforms to ASTM A276 standards for strength and dimensional accuracy.
As a medium-sized 3/4" x 1" bar, it provides a solid balance of strength and workability. It is frequently used for structural bracing, machine ways, wear strips, base plates for smaller equipment, and architectural supports where both durability and a clean appearance are important.
Specifications
- Material: 304 Stainless Steel
- Standards: ASTM A276
- Strength/Tensile: 73,200 PSI
- Dimensions: 3/4" Thickness x 1" Width x 144" Length
- Finish: Annealed, Mill Finish
- Certifications: Mill Test Report (MTR) Available
Applications
- General Fabrication: Structural bracing & gussets - excellent strength-to-weight ratio and weldability.
- Machinery: Machine ways and guides - provides a durable, corrosion-resistant slide surface.
- Architectural: Support brackets and trim - offers a clean, modern aesthetic with long-term weather resistance.
- Food & Beverage: Equipment framework & mounts - hygienic and easy-to-clean surface resists organic acids.
Target Users
Fabricators, welders, machinists, and construction professionals rely on 304 Flat Bar for its versatility and durability in structural and aesthetic applications throughout the Los Angeles area.
Finish Options
This product comes standard with a mill finish from the hot rolling process and is in an annealed condition. For specific project requirements, other finishes such as a polished #4 brushed finish may be available via special order. Contact our Los Angeles sales team for custom finish inquiries.
How to Measure
Flat bar is measured by its Thickness (the smaller dimension) and its Width (the larger dimension). Use calipers or a tape measure for accuracy.
Example: To order this flat bar, specify "304 Stainless Flat Bar, 3/4 inch thick by 1 inch wide".
Order Checklist
- Product name and required dimensions (3/4" x 1")
- Material specification and quantity
- Confirm grade (304) meets requirements
- Surface finish requirements (Annealed, Mill Finish)
- Certifications required (Mill Test Report)
- Special handling or delivery requirements
Quick Facts
- Product
- Stainless Steel Flat Bar 304 - 3/4 Inch X 1 Inch
- Material
- 304 Stainless Steel
- Standards
- ASTM A276
- Key Properties
- 73,200 PSI tensile, Excellent Weldability, Excellent Corrosion Resistance
- Primary Applications
- Structural bracing, machine ways, architectural trim
- Location
- Los Angeles warehouse - Same-day pickup available
Available Sizes
We stock 304 Stainless Flat Bar in a wide range of widths and thicknesses. This 3/4" x 1" size is available for immediate pickup in Los Angeles.
Custom cutting services available.
Contact for Sizing
