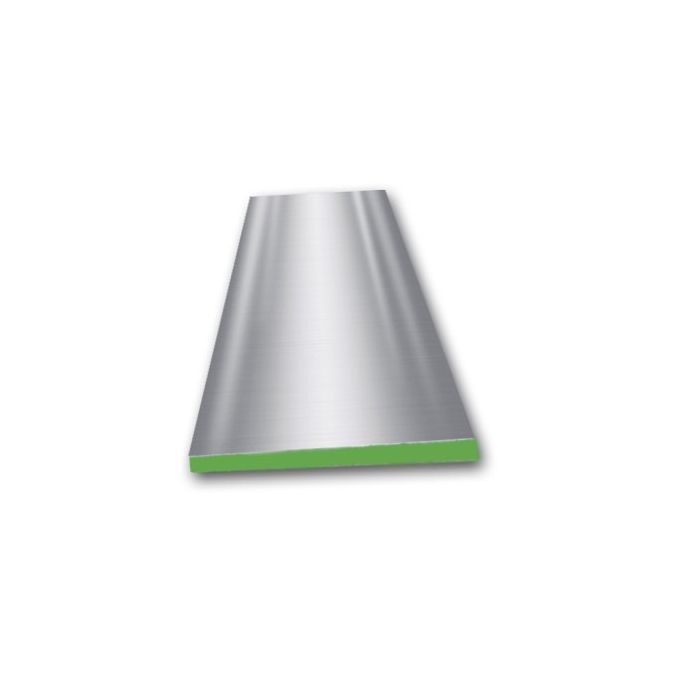

Stainless Steel Flat Bar 304 - 3/16 Inch X 3-1/4 Inch
Stainless Steel Flat Bar 304 - 3/16 Inch X 3-1/4 Inch
This 3-1/4" x 3/16" stainless steel flat bar is made from Type 304 alloy, conforming to ASTM A276. It provides an excellent combination of strength, corrosion resistance, and weldability. Ideal for structural supports, braces, and general fabrication projects requiring a durable, rectangular profile. In stock Los Angeles.
- 304 Stainless Steel Construction
- ASTM A276 Certified
- 73,200 PSI Tensile Strength
- Excellent Corrosion Resistance
Type 304 stainless steel, also known as 18-8, is an austenitic chromium-nickel alloy valued for its superior resistance to atmospheric and chemical corrosives. In its annealed condition, it is non-magnetic and features exceptional ductility and weldability. This flat bar is produced to meet ASTM A276 standards, ensuring consistent mechanical properties and precise dimensions for fabrication.
As a large-profile flat bar, this 3-1/4" wide material is well-suited for heavy-duty applications. Its size makes it ideal for base plates for machinery, heavy structural supports and braces, die components, and custom flanges where significant load-bearing capacity and corrosion resistance are essential.
Specifications
- Material: 304 Stainless Steel
- Standards: ASTM A276
- Strength/Tensile: 73,200 PSI
- Dimensions: 3/16" Thickness x 3-1/4" Width x 144" Length
- Finish: Annealed, Mill Finish
- Certifications: MTR Available
Applications
- General Fabrication: Base plates - provides a stable, corrosion-resistant foundation for machinery.
- Construction: Heavy structural braces and gussets - offers high strength and weather resistance.
- Food & Beverage: Equipment framework - hygienic surface and resistance to organic acids.
- Architectural: Support brackets and decorative trim - combines strength with a clean aesthetic.
Target Users
Fabricators, construction contractors, and maintenance engineers rely on 304 Flat Bar for its strength and versatility in structural and corrosive environments throughout the Los Angeles area.
Finish Options
This product comes standard with a mill finish, typical of hot-rolled and annealed stainless steel bar. It has a slightly dull, matte appearance. For specific project requirements, other finishes such as polished (#4 brushed) may be available via special order. Contact our Los Angeles sales team for custom finish inquiries.
How to Measure
Flat bar is measured by its Thickness (A) and Width (B). Use calipers to measure the two perpendicular sides of the rectangular cross-section.
Example: To order this flat bar, specify "304 Stainless Flat Bar, 3/16" Thick x 3-1/4" Wide x 144" Length".
Order Checklist
- Product name and required dimensions (3/16" x 3-1/4" x 144")
- Material specification and quantity
- Confirm grade (304) meets requirements
- Surface finish requirements (Mill Finish)
- Certifications required (Mill Test Report)
- Special handling or delivery requirements
Quick Facts
- Product
- Stainless Steel Flat Bar 304 - 3/16 Inch X 3-1/4 Inch
- Material
- 304 Stainless Steel
- Standards
- ASTM A276
- Key Properties
- 73,200 PSI tensile, Excellent Weldability, Excellent Corrosion Resistance
- Primary Applications
- Base Plates, Structural Supports, Equipment Framework
- Location
- Los Angeles warehouse - Same-day pickup available
Available Sizes
We stock 304 Stainless Flat Bar in widths from 1/2" to 6" and thicknesses from 1/8" to 1". This 3-1/4" x 3/16" size is available for immediate pickup in Los Angeles.
Custom cutting services available.
Contact for Sizing
