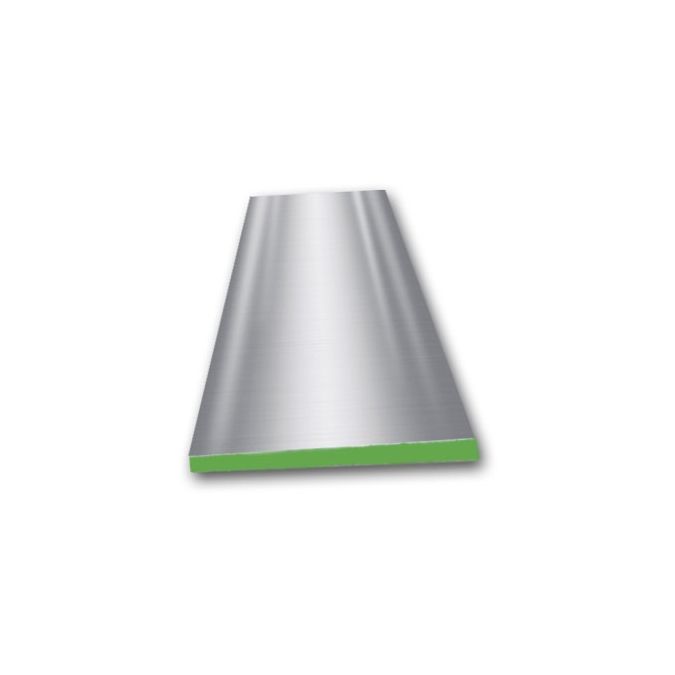

Stainless Steel Flat Bar 304 - 1/8 Inch X 5/8 Inch
Stainless Steel Flat Bar 304 - 1/8 Inch X 5/8 Inch
This 1/8" x 5/8" 304 Stainless Steel Flat Bar is a versatile, general-purpose austenitic steel. Certified to ASTM A276, it provides excellent corrosion resistance, high ductility, and superior weldability. Ideal for structural supports, brackets, and food-grade fabrication. In stock Los Angeles.
- 304 Stainless Steel Construction
- ASTM A276 Certified
- 73,200 PSI Tensile Strength
- Excellent Corrosion Resistance
Type 304 is the most widely used austenitic chromium-nickel stainless steel, often called "18-8". This composition provides excellent resistance to atmospheric and chemical corrosives. In its annealed condition, it is non-magnetic, highly ductile, and conforms to ASTM A276. Its combination of strength, formability, and weldability makes it a reliable material for countless fabrication projects.
As a small-profile flat bar, the 1/8" x 5/8" size is perfectly suited for creating lightweight structural components. It is commonly used for manufacturing support brackets, mounting straps, shims, gussets, and decorative architectural trim where both strength and a clean appearance are required.
Specifications
- Material: 304 Stainless Steel
- Standards: ASTM A276
- Strength/Tensile: 73,200 PSI
- Dimensions: 1/8" Thickness x 5/8" Width x 144" Length
- Finish: Annealed, Mill Finish
- Certifications: MTR Available
Applications
- General Fabrication: Brackets & Straps - Its small size is easy to cut and bend for custom supports.
- Architecture & Construction: Decorative Trim - Provides a clean, corrosion-resistant edge for interior and exterior finishes.
- Food & Beverage: Equipment Braces - Hygienic and resistant to organic acids, ideal for non-contact supports.
- Automotive/Marine: Custom Fittings - Easily fabricated into custom hardware for non-critical applications.
Target Users
Fabricators, welders, machinists, and architectural metal workers rely on 304 Stainless Flat Bar for its versatility and corrosion resistance in projects throughout the Los Angeles area.
Finish Options
This product comes standard with an annealed mill finish, which may have some surface imperfections. It is suitable for most industrial and structural applications. For aesthetic projects, it can be polished to a brushed (#4) or mirror (#8) finish. Contact our Los Angeles sales team for custom finish inquiries.
How to Measure
Flat bar is measured by its Thickness (A) and Width (B). Use calipers to ensure accurate dimensions.
Example: To order this flat bar, specify "304 Stainless Flat Bar, 1/8" thick by 5/8" wide".
Order Checklist
- Product name and required dimensions (1/8" x 5/8" x 144")
- Material specification and quantity
- Confirm grade (304) meets requirements
- Surface finish requirements (Annealed, Mill Finish)
- Certifications required (Mill Test Report)
- Special handling or delivery requirements
Quick Facts
- Product
- Stainless Steel Flat Bar 304 - 1/8 Inch X 5/8 Inch
- Material
- 304 Stainless Steel
- Standards
- ASTM A276
- Key Properties
- 73,200 PSI tensile, Excellent Corrosion Resistance, Superior Weldability
- Primary Applications
- Brackets, Straps, Decorative Trim
- Location
- Los Angeles warehouse - Same-day pickup available
Available Sizes
We stock 304 Stainless Flat Bar in widths from 1/2" to 3-1/2" and thicknesses from 1/16" to 1/8". This 1/8" x 5/8" size is available for immediate pickup in Los Angeles.
Custom cutting services available.
Contact for Sizing
