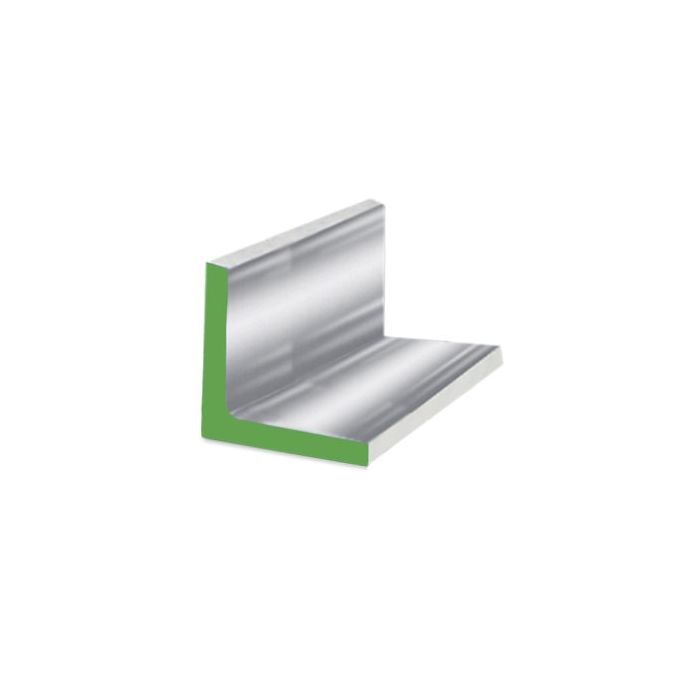

Stainless Steel Angle 304 - 3 Inch X 3 Inch X 1/2 Inch
Stainless Steel Angle 304 - 3 Inch X 3 Inch X 1/2 Inch
This 3" x 3" x 1/2" 304 Stainless Steel Angle is a versatile structural shape conforming to ASTM A276. It provides excellent weldability, high strength, and superior corrosion resistance, making it ideal for fabrication, construction, and architectural applications. In stock Los Angeles.
- 304 Stainless Steel Construction
- ASTM A276 Certified
- 73,200 PSI Tensile Strength
- Excellent Weldability & Corrosion Resistance
Type 304 stainless steel is the most common austenitic "18-8" grade, containing 18% chromium and 8% nickel. This composition creates a passive surface layer that delivers excellent resistance to atmospheric corrosion. Conforming to ASTM A276, it combines 73,200 PSI tensile strength with high ductility. It is non-magnetic in the annealed condition and can be readily welded using common techniques.
As a medium-sized 3" x 3" angle with a robust 1/2" thickness, this product is ideal for structural framing, equipment bases, heavy-duty shelving, and support brackets. Its dimensional stability and strength are suited for applications requiring significant load-bearing capability and rigidity in two directions.
Specifications
- Material: 304 Stainless Steel
- Standards: ASTM A276
- Strength/Tensile: 73,200 PSI
- Dimensions: 3" Leg x 3" Leg x 1/2" Thickness x 240" Length
- Finish: Mill Finish, Annealed
- Certifications: MTR Available
Applications
- Construction & Architectural: Brackets, corner guards, and lintels - superior corrosion resistance for exposed structures.
- Industrial Fabrication: Frames for workbenches and heavy carts - high strength and weldability for durable assemblies.
- Food & Beverage: Equipment framework and supports - sanitary, non-reactive surface is easy to clean.
- Marine & Chemical: Non-structural supports and bracing - excellent performance in freshwater and mild chemical environments.
Target Users
Fabricators, welders, contractors, and maintenance engineers rely on 304 Stainless Angle for its balance of strength, corrosion resistance, and workability in projects throughout the Los Angeles area.
Finish Options
This product comes standard with a mill finish, typical of hot-rolled structural shapes. For specific aesthetic requirements, brushed (#4) or mirror (#8) polished finishes may be available via special order. Contact our Los Angeles sales team for custom finish inquiries.
How to Measure
Angles are defined by three measurements: Leg (A), Leg (B), and Thickness (C). For an equal leg angle, measure the outside length of one leg and the material's thickness.
Example: To order this angle, specify "304 Stainless Angle, 3 inch x 3 inch x 1/2 inch thickness".
Order Checklist
- Product name and required dimensions (3" x 3" x 1/2")
- Material specification and quantity
- Confirm grade (304) meets requirements
- Surface finish requirements (Mill Finish)
- Certifications required (Mill Test Report)
- Special handling or delivery requirements
Quick Facts
- Product
- Stainless Steel Angle 304 - 3 Inch X 3 Inch X 1/2 Inch
- Material
- 304 Stainless Steel
- Standards
- ASTM A276
- Key Properties
- 73,200 PSI tensile, Excellent Weldability, Excellent Corrosion Resistance
- Primary Applications
- Structural Framing, Equipment Bases, Architectural Trim
- Location
- Los Angeles warehouse - Same-day pickup available
Available Sizes
We stock 304 Stainless Angle in leg sizes from 1/2" to 6" and lengths up to 240". This 3" x 3" x 1/2" size is available for immediate pickup in Los Angeles.
Custom cutting services available.
Contact for Sizing
