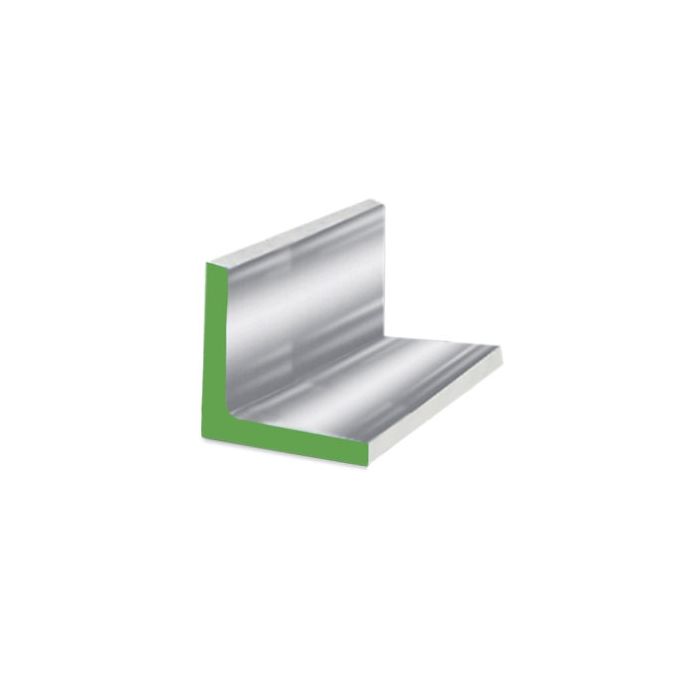

Stainless Steel Angle 304 - 2-1/2 Inch X 2-1/2 Inch X 3/8 Inch
Stainless Steel Angle 304 - 2-1/2 Inch X 2-1/2 Inch X 3/8 Inch
This 2-1/2" x 2-1/2" x 3/8" 304 Stainless Steel Angle provides a versatile blend of strength, corrosion resistance, and weldability. Conforming to ASTM A276, it's ideal for structural framing, equipment bases, and architectural applications requiring a durable, non-magnetic material. In stock Los Angeles.
- 304 Stainless Steel Construction
- ASTM A276 Certified
- 73,200 PSI Tensile Strength
- Excellent Corrosion Resistance
Type 304 is the most widely used austenitic stainless steel, also known as "18-8" for its 18% chromium and 8% nickel composition. This alloy offers exceptional resistance to atmospheric corrosion and chemical exposures. It is non-magnetic, highly ductile, and conforms to ASTM A276 standards. Its excellent weldability makes it a versatile choice for a wide range of fabricated assemblies.
As a medium-sized angle, the 2-1/2" legs provide substantial structural support for equipment bases, shelving units, building frames, and industrial supports. Its 90-degree profile is perfect for corner reinforcement and creating strong, straight edges in fabricated projects where both load-bearing capacity and longevity are critical.
Specifications
- Material: 304 Stainless Steel
- Standards: ASTM A276
- Strength/Tensile: 73,200 PSI
- Dimensions: 2-1/2" x 2-1/2" Legs, 3/8" Thickness, 240" Length
- Finish: Mill Finish, Annealed
- Certifications: MTR Available
Applications
- Structural & Construction: Building frames and supports - combines load-bearing strength with corrosion resistance.
- Industrial Equipment: Machine bases and framework - provides rigid, long-lasting support for heavy machinery.
- Fabrication: Heavy-duty shelving and workbenches - creates robust structures for industrial and workshop use.
- Architectural: Lintels and corner guards - offers a clean, durable finish for structural and decorative elements.
Target Users
Fabricators, construction contractors, and machine builders rely on 304 stainless angle for its combination of strength and environmental resistance in projects throughout the Los Angeles area.
Finish Options
This product comes standard with a mill finish, typical of hot-rolled structural shapes. This may include a slight texture and scale. For specific aesthetic requirements, finishes such as a #4 brushed polish can be applied via special order. Contact our Los Angeles sales team for custom finish inquiries.
How to Measure
An angle is measured by its two legs (A & B) and its thickness (C). Since this is an equal leg angle, both legs are the same dimension.
Example: To order this angle, specify "304 Stainless Angle, 2-1/2" x 2-1/2" x 3/8" thickness".
Order Checklist
- Product name and required dimensions (2-1/2" x 2-1/2" x 3/8")
- Material specification and quantity
- Confirm grade (304) meets requirements
- Surface finish requirements (Mill Finish)
- Certifications required (Mill Test Report)
- Special handling or delivery requirements
Quick Facts
- Product
- Stainless Steel Angle 304 - 2-1/2 Inch X 2-1/2 Inch X 3/8 Inch
- Material
- 304 Stainless Steel
- Standards
- ASTM A276
- Key Properties
- 73,200 PSI tensile, Excellent Weldability, Excellent Corrosion Resistance
- Primary Applications
- Structural Framing, Equipment Bases, Shelving
- Location
- Los Angeles warehouse - Same-day pickup available
Available Sizes
We stock 304 Stainless Angle in leg sizes from 1/2" to 6" and lengths up to 240". This 2-1/2" x 2-1/2" x 3/8" size is available for immediate pickup in Los Angeles.
Custom cutting services available.
Contact for Sizing
