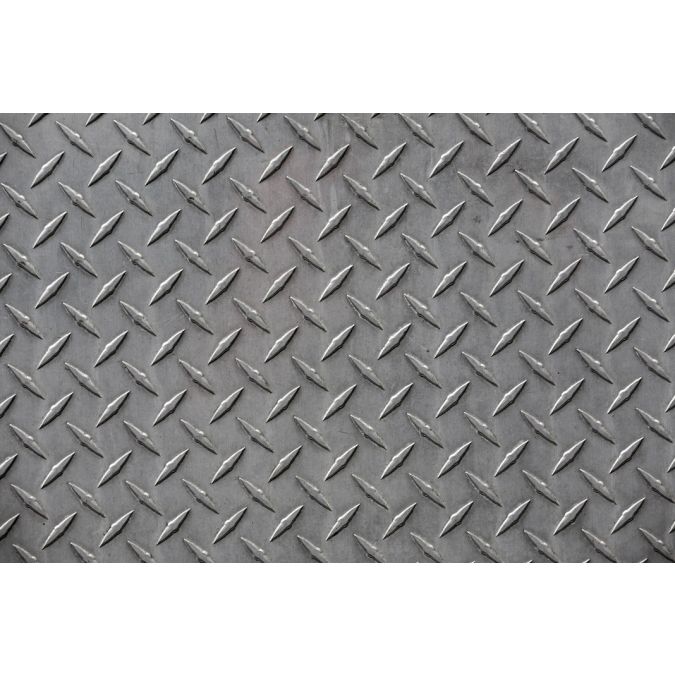

Hot Rolled Diamond Plate - 16 Gauge
Hot Rolled Diamond Plate - 16 Gauge
This 16 Gauge Hot Rolled Diamond Plate offers a durable, slip-resistant surface in a standard 4' x 10' sheet. Made from A36 structural steel conforming to ASTM A36/A786, it provides excellent weldability and strength. Ideal for lightweight industrial flooring, ramps, and automotive applications. In stock Los Angeles.
- A36 Steel Construction
- ASTM A36 / A786 Certified
- 58,000-80,000 PSI Tensile Strength
- Excellent Weldability & Slip Resistance
Hot rolled diamond plate, also known as tread plate, is an A36 steel sheet with a raised pattern for enhanced traction. The hot rolling process gives it a durable, scaled finish suited for demanding industrial environments where safety and function are key. Its A36 base material ensures excellent weldability and fabrication characteristics, allowing it to be easily cut and formed.
As a 'small' thickness plate, this 16 gauge sheet is excellent for applications requiring durability without heavy structural loads. Common uses include formed brackets, protective kick plates, toolbox construction, and decorative wall panels in commercial settings where an industrial aesthetic is desired.
Specifications
- Material: A36 Hot Rolled Steel
- Standards: ASTM A786 (Pattern), ASTM A36 (Material)
- Strength/Tensile: 58,000 - 80,000 PSI
- Dimensions: 16 Gauge (0.0598") x 48" x 120"
- Finish: Hot Rolled (Mill Scale)
- Certifications: MTR Available
Applications
- Automotive & Transportation: Truck bed liners, toolboxes, and running boards - for impact and abrasion resistance without significant weight.
- Commercial: Kitchen wall panels, door kick plates, and corner guards - combines durability with an industrial aesthetic.
- Industrial: Light-duty catwalks, equipment guards, and work surfaces - provides a safe, slip-resistant surface for foot traffic.
- Fabrication: Custom brackets and decorative elements - easy to cut, form, and weld for unique projects.
Target Users
Fabricators, welders, trailer manufacturers, and contractors rely on A36 Diamond Plate for its blend of safety, durability, and workability in projects throughout the Los Angeles area.
Finish Options
This product comes standard with a hot rolled mill finish, which has a characteristic blue-grey scale. For painting or powder coating, this scale should be removed via grinding or sandblasting. Left untreated, it will develop a surface rust patina. Contact our Los Angeles sales team for custom finish inquiries.
How to Measure
Diamond plate thickness is measured from the base of the plate, not including the height of the raised pattern. Width and Length are the overall dimensions of the sheet.
Example: To order this plate, specify "Hot Rolled Diamond Plate, 16 Gauge x 48" x 120"".
Order Checklist
- Product name and required dimensions (16 Gauge x 48" x 120")
- Material specification and quantity
- Confirm grade (A36) meets requirements
- Surface finish requirements (Hot Rolled Mill Finish)
- Certifications required (Mill Test Report)
- Special handling or delivery requirements
Quick Facts
- Product
- Hot Rolled Diamond Plate - 16 Gauge
- Material
- A36 Hot Rolled Steel
- Standards
- ASTM A36, ASTM A786
- Key Properties
- 58k-80k PSI tensile, Excellent Weldability, Slip-Resistant Pattern
- Primary Applications
- Truck Bed Liners, Stair Treads, Protective Panels
- Location
- Los Angeles warehouse - Same-day pickup available
Available Sizes
We stock Hot Rolled Diamond Plate in thicknesses from 16 gauge to 3/16". This 16 Gauge (4' x 10') size is available for immediate pickup in Los Angeles.
Custom cutting services available.
