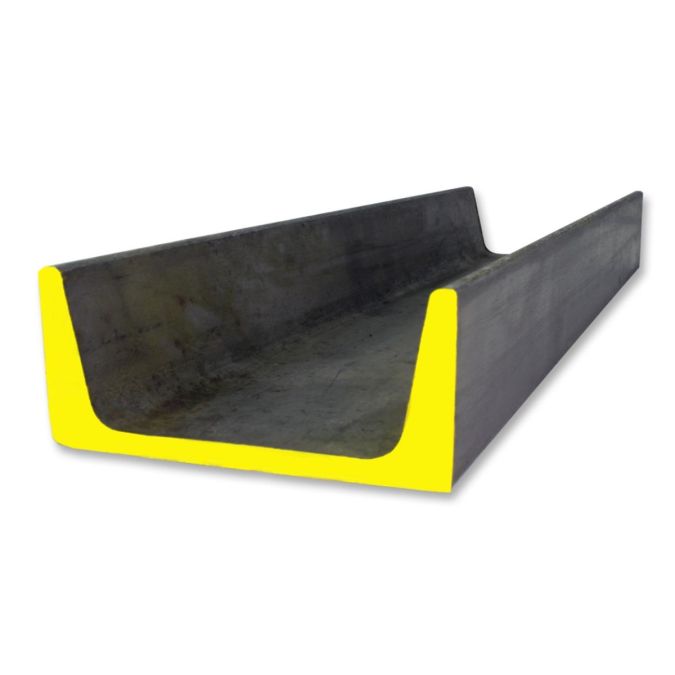

Hot Rolled Channels - Standard Size - C7 X 14.75
A36 Hot Rolled Steel Channel - 7" x 14.75 lb/ft x 20'
This 7" x 14.75 lb/ft A36 Hot Rolled Steel Channel is a structural profile providing robust support for heavy-duty applications. Conforming to ASTM A36, it offers a minimum 36,000 PSI yield strength and excellent weldability for straightforward fabrication. Ideal for frames, supports, and brackets. In stock Los Angeles.
- A36 Carbon Steel Construction
- ASTM A36 Certified
- 58,000-80,000 PSI Tensile Strength
- Excellent Weldability for Fabrication
A36 hot rolled channel, also known as C-channel, is a structural steel shape produced by passing heated steel through rollers. This process gives it a rough, scaled surface finish. A36 is the standard grade for this product, providing a balance of strength, ductility, and excellent weldability for general structural purposes where tight tolerances are not the primary requirement.
As a large profile channel, this 7" dimension provides significant strength for load-bearing applications. It is commonly used for heavy equipment bases, main support beams in structural framing, industrial catwalks, and heavy-duty trailer frames where rigidity and durability are critical.
Specifications
- Material: A36 Hot Rolled Steel
- Standards: ASTM A36
- Strength/Tensile: 58,000-80,000 PSI
- Dimensions: 7" Width x 2.299" Flange Height x 0.419" Web Thickness x 20' Length
- Finish: Hot Rolled (Mill Finish)
- Certifications: MTR Available
Applications
- Industrial Machinery: Main frames and bases for heavy equipment, providing a rigid foundation.
- Structural Framing: Support beams, columns, and cross-members in building and mezzanine construction.
- Vehicle & Trailer Manufacturing: Main chassis rails and structural components for heavy-duty utility trailers and truck bodies.
- Material Handling: Frames for heavy-duty conveyor systems, industrial carts, and pallet racking supports.
Target Users
Fabricators, construction contractors, and heavy equipment manufacturers rely on A36 channel for its strength-to-cost ratio in structural applications throughout the Los Angeles area.
Finish Options
This product comes standard with a hot rolled (mill) finish, characterized by a rough, blue-gray scaled surface. This scale must be removed before painting or powder coating for proper adhesion. For maximum corrosion resistance, it can be hot-dip galvanized. Contact our Los Angeles sales team for custom finish inquiries.
How to Measure
Steel channel is measured by its depth (A), the flat back side, and its weight per foot. Flange height (B) and web thickness (C) are standard for each size.
Example: To order this channel, specify "A36 Channel, 7 inches by 14.75 pounds per foot".
Order Checklist
- Product name and required dimensions (7" x 14.75 lb/ft x 20')
- Material specification and quantity
- Confirm grade (A36) meets requirements
- Surface finish requirements (Hot Rolled)
- Certifications required (Mill Test Report)
- Special handling or delivery requirements
Quick Facts
- Product
- A36 Hot Rolled Steel Channel - 7" x 14.75 lb/ft x 20'
- Material
- A36 Hot Rolled Steel
- Standards
- ASTM A36
- Key Properties
- 58,000-80,000 PSI tensile, excellent weldability, good formability
- Primary Applications
- Equipment frames, structural supports, trailer chassis
- Location
- Los Angeles warehouse - Same-day pickup available
Available Sizes
We stock A36 Hot Rolled Channel in a wide range of standard structural sizes and weights. This 7" x 14.75 lb/ft size is available for immediate pickup in Los Angeles.
Custom cutting services available.
Contact for Sizing
