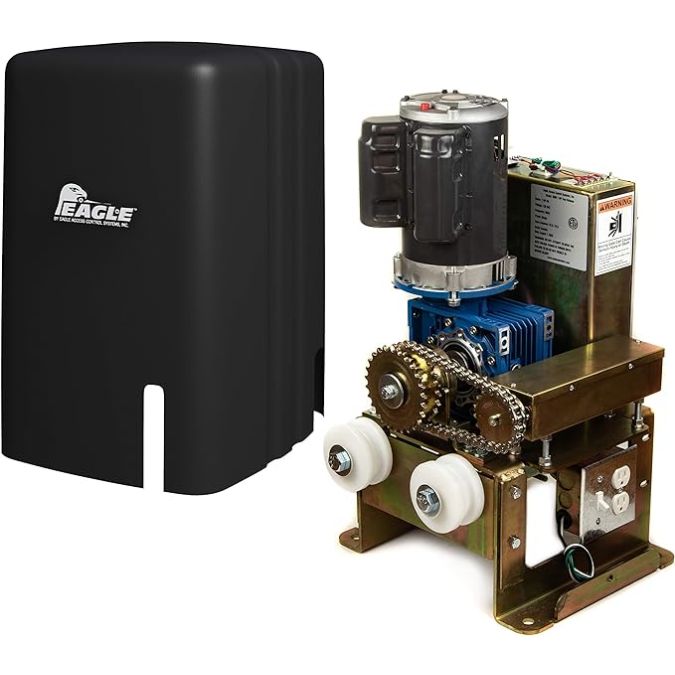

EAGLE 2000 FR W/RECV 1HP

The Eagle-2000-FR-1HP Slide Gate Operator is designed for commercial or industrial gates. The Eagle-2000-FR 1 Horsepower can withstand up to 45’ ft gates or 2000 lb capacity making it ideal for heavy traffic applications. The Eagle-2000-FR-1HP is designed with a 1 horsepower motor. During a power outage, the Eagle-2000-FR-1HP can manually be pushed open while stepping on the built-in foot pedal and can be padlocked to secure. Furthermore, the Eagle-2000-FR-1HP also includes reinforced lighting and surge protection.

Standard Features

• 2-Wire Master/Slave with Global Inputs
• Open/Close Delay
• One Pass (No Tailgate)
• Motor Brake
• 24 VDC Output for MAG Lock
• 24 VAC Auxiliary Power Output
• Partial Open
• Stop-Reverse
• Auto-Close Timer (1-60 sec.)
• Have questions? Contact us.

Mechanical

• Chain: #40 Nickel Plated (20′)
• Gear Reducer: Size 50
• Cover: All-Weather/UV Resistant (HDPE)
• Chassis: 1/4″ Zinc Plated Steel to Resist Corrosion
• Power Disconnect (1/2 HP)
• Auxiliary 120 VAC Power Outlet

Hardware

• No-Weld Chain Brackets
• UHMW Silent Idler Wheels
• Audio Alarm
• Pre-Wired Receiver Terminal
• Hand Crank (FSC Models Only)

Warranty

• 5-Year Limited (Commercial)
• 7-Year Limited (When Used in Residential Application)

Compliance

• UL 325 and UL 991
• ETL Listed

Operating Classification

• Class I, II, III & IV
• Manual Release
• Fail-Safe (FSF): Push to open
• Fail-Secure (FSC): Use Crank to open
• Foot Release(FR): Step on the pedal and push the gate open

Gate Capacity & Operation

• Maximum Gate for 2000-FSF, 2000-FSC, 2000-DM, 2000-FR: 45’ 1000 lbs.
• Maximum Gate for 2000-FR-1HP: 45’ & 2000 lbs
• 12” per second travel
• Rated Continuous Duty

Optional

• Power I Battery Backup (for 1/2 HP)
• Power II Battery Backup (for 1 HP) Provides up to 40-80 Cycles

Power

• Eagle-2000-FSF, 2000-FSC & 2000-FR – ½ HP Continuous Duty AC 115 VAC @ 60 Hz 5.7 AMP
• Eagle 2000 1HP – Dual 1/2 HP Continuous Duty AC 115 VAC @ 60 HZ 11.4 AMP
• Eagle-2000-FR-1HP – 1 HP Continuous Duty AC 115 VAC @ 60 Hz 11.4 AMP
• Close 115 VAC @ 60 HZ 5.7 AMP

Dimensions

• 26″ (h) x 18″ (w) x 17″ (d)
