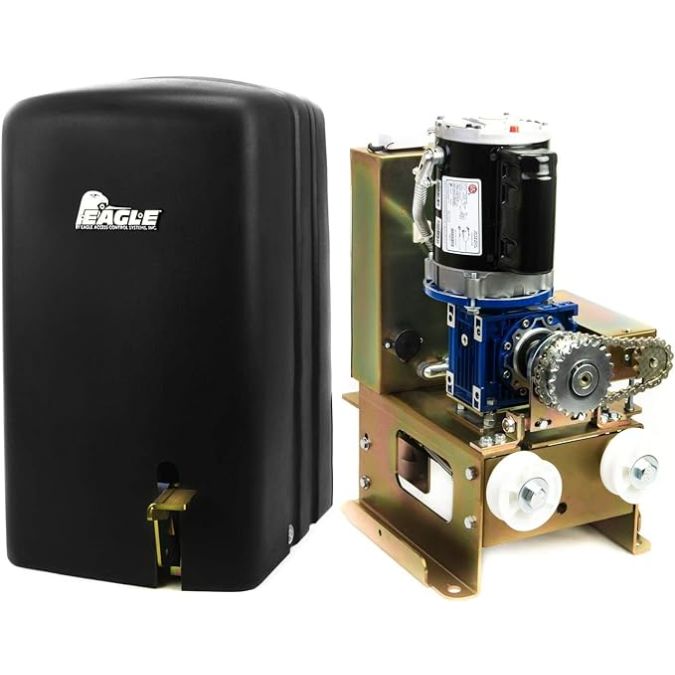

EAGLE-1000 FR 1/2 HP SLIDE GATE OPERATOR MOTOR FOR RESIDENTIAL ACCESS CONTROL ENTRANCE - UP TO 27' FT 600LBS FOR HOME OR LIGHT COMMERCIAL BUSINESSES WITH 2 REMOTES, RECEIVER, AND PHOTO EYE MONITOR

The Eagle1000-FR Slide Gate Operator is designed for residential or light commercial applications. It is built for gates up to 27’ feet or 600lbs. The Foot Release model allows you to push the gate open with the use of a foot pedal in case of a power outage. The operator is equipped with 20’ feet of nickel-plated chain with a no-weld chain kit for easy installation.

Standard Features

• 2-Wire Master/Slave with Global Inputs
• Open/Close Delay
• One Pass (No Tailgate)
• Motor Brake
• 24 VDC Output for MAG Lock
• 24 VAC Auxiliary Power Output
• Partial Open
• Stop-Reverse
• Auto-Close Timer (1-60 sec.)

MechanicalChain: #41 Nickel Plated (20′)

• Gear Reducer: Size 50
• Swing Arm with No-Pinch Design
• Cover: All-Weather/UV Resistant (HDPE)
• Chassis: 3/16″ Zinc Plated Steel
• Power Disconnect (1/2 HP)

Hardware

• No-Weld Chain Brackets
• UHMW Silent Idler Wheels
• Audio Alarm
• Pre-Wired Receiver Terminal
• Operating Classification
• Operating Classification

Compliance

• UL 325 and UL 991
• ETL Listed

Manual Release

• Fail-Safe (FSF): Push to open
• Fail-Secure (FSC): Use Crank to open
• Foot Release(FR): Step on the pedal and push the gate open

Pre-Wired Receiver Terminal

• Maximum Gate for 1000-FSF, 1000-FSC & 1000-FR: 27’ & 600 lbs
• 12” per second travel
• Rated Continuous Duty

Warranty

• 5-Year Limited (Residential)

Power

• 1/2 HP Continuous Duty AC
• 115 VAC @ 60 HZ 5.7 AMP

Dimensions

• 22″ (h) x 15″ (w) x 13 1/2″ (d)
