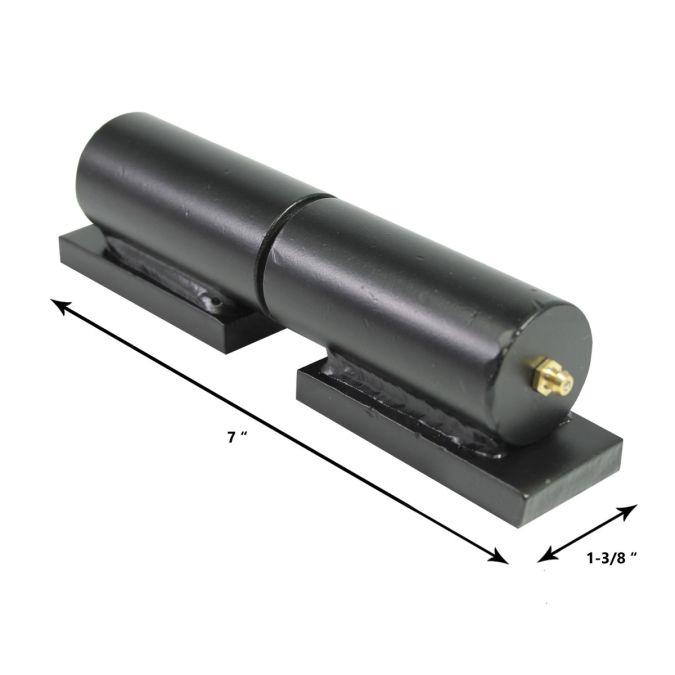

7 Inches Barrel Hinges



  • Barrel Hinge: 7"
  • Diameter: 1-1/4"
  • Pin: 3/4"
  • Plate Width: 1-1/2"
  • Plate Length: 2-3/4"
  • Gap: 1-3/4"
  • A pair may hold up to 900lbs.
Categories: Hinges

A barrel is a component of a hinge that has a hollow cylinder shaped section where the rotational bearing force is applied to the pivot. It also has a screw shaped section for fastening and/or driving the pivot. A pair of 7" barrel hinges may hold up to 900lbs. Weld on the mounting plate pin sits on ball bearings for easy pivot. Welding required for installation. This material is per piece.

More Information
Weight 3.500000
Thickness 3
Freight Class 70
