5052 Aluminum Sheet - 0.1

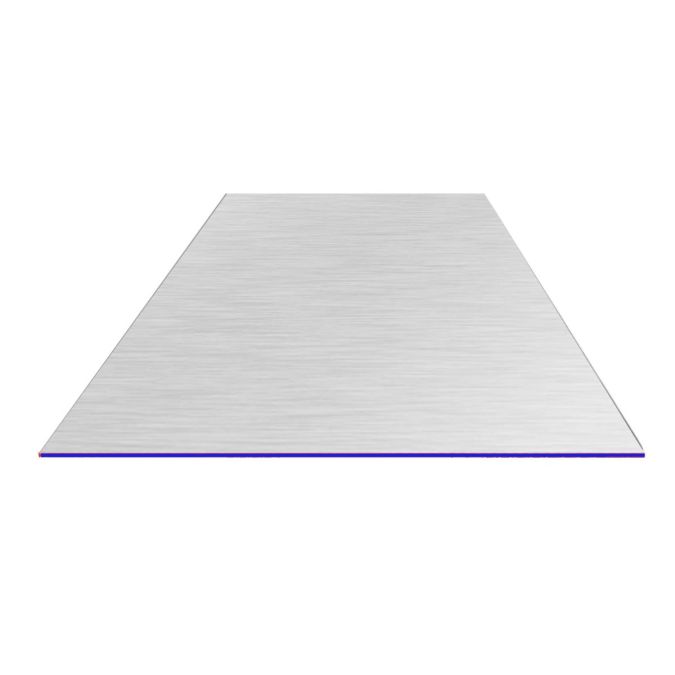

5052-H32 Aluminum Sheet - 0.1" x 48" x 120"
This 0.1" x 48" x 120" 5052-H32 aluminum sheet is a non-heat-treatable alloy with high fatigue strength and excellent corrosion resistance. Conforming to ASTM B209, it combines 33,000 PSI tensile strength with superior formability, making it ideal for marine and transportation applications. In stock Los Angeles.
- 5052-H32 Aluminum Construction
- ASTM B209 Certified
- 33,000 PSI Tensile Strength
- Excellent Corrosion Resistance
5052 aluminum is a non-heat-treatable alloy containing magnesium, which provides high fatigue strength and excellent resistance to corrosion, especially in marine settings. The H32 temper signifies it has been strain-hardened and stabilized to a quarter-hard state, offering a balanced combination of strength and ductility. It conforms to ASTM B209 standards and is one of the most formable aluminum alloys.
The 0.1" thickness classifies this sheet as a medium-duty material, well-suited for applications requiring more rigidity than thinner gauges. Common uses include structural panels for truck trailers, machine guards, fuel tanks, and architectural cladding where durability and weather resistance are critical.
Specifications
- Material: 5052-H32 Aluminum
- Standards: ASTM B209
- Strength/Tensile: 33,000 PSI
- Dimensions: 0.1" thick x 48" width x 120" length
- Finish: H32 Temper, Mill Finish
- Certifications: MTR Available
Applications
- Marine: Boat hulls and decking - superior saltwater corrosion resistance and weldability.
- Automotive: Fuel tanks and truck-trailer side panels - high fatigue strength and excellent formability.
- Industrial: Pressure vessels and chemical storage tanks - weldable and resistant to industrial chemicals.
- Architecture: Building facades and decorative panels - smooth finish and weather resistance.
Target Users
Fabricators, welders, and marine engineers rely on 5052 aluminum sheet for its exceptional durability and workability in marine and transportation industries throughout the Los Angeles area.
Finish Options
This product comes standard with a mill finish in the H32 temper. The surface is smooth and suitable for most industrial applications, though minor surface imperfections may be present. For specific project requirements, other finishes such as anodizing or powder coating may be applied after fabrication. Contact our Los Angeles sales team for custom finish inquiries.
How to Measure
Sheet metal is measured by its thickness, width, and length. Use calipers to verify thickness and a tape measure for width and length.
Example: To order this sheet, specify "5052 Aluminum Sheet, 0.1" x 48" x 120".
Order Checklist
- Product name and required dimensions (0.1" x 48" x 120")
- Material specification and quantity
- Confirm grade (5052-H32) meets requirements
- Surface finish requirements (H32 Temper, Mill Finish)
- Certifications required (Mill Test Report)
- Special handling or delivery requirements
Quick Facts
- Product
- 5052-H32 Aluminum Sheet - 0.1" x 48" x 120"
- Material
- 5052-H32 Aluminum
- Standards
- ASTM B209
- Key Properties
- 33,000 PSI tensile, excellent formability, excellent corrosion resistance
- Primary Applications
- Marine components, fuel tanks, structural panels
- Location
- Los Angeles warehouse - Same-day pickup available
Available Sizes
We stock 5052 Aluminum Sheet in thicknesses from 0.025" to 0.190" and standard sizes including 4x10 and 5x12 ft. This 0.1" x 48" x 120" size is available for immediate pickup in Los Angeles.
Custom cutting services available.
