HWOSDOV05-110
5 Inches Barrel Hinges
Out of stock
Specification
- Barrel Hinge: 5"
- Diameter: 1"
- Pin: 5/8"
- Plate Width: 1-1/2"
- Plate Length: 2"
- Gap: 1-1/2"
- A pair may hold up to 450lbs.

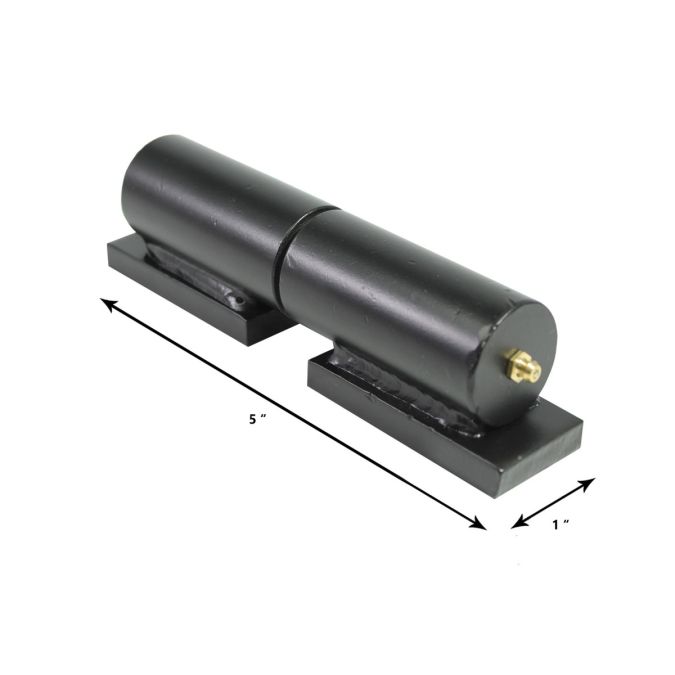

Hinge measures 5" in length including weld on mounting plates. Barrel measures 1" in diameter plus 5/16" mounting plates. Hinge pin is 5/8" diameter x 1-1/16" long & extends into the upper barrel. 1-5/8" spacing from post to gate frame for 90 degree swing. Hinge pin sits on ball bearing for easy pivot. Zerk fitting at top for lubrication with grease gun. This material is sold per piece.
Weight
1.500000
Thickness
3
SKU
HWOSDOV05-110
