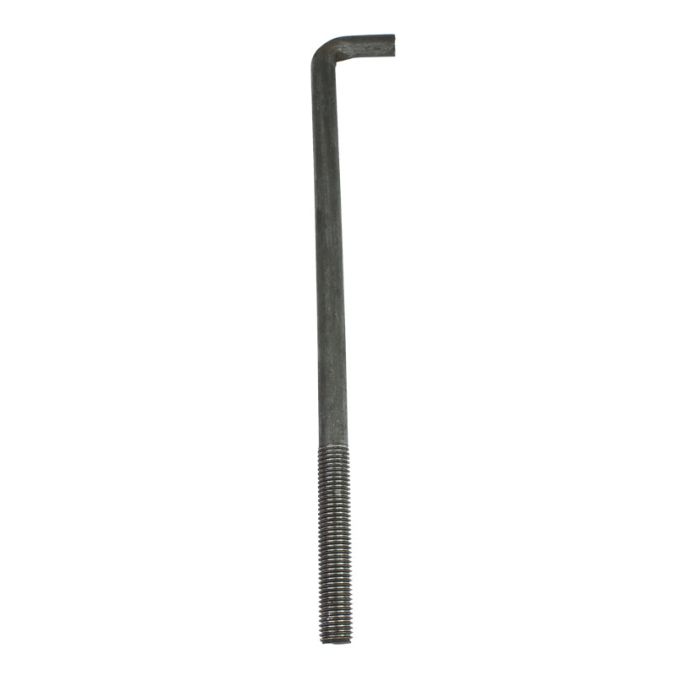

5/8 X 16 J Anchor Bolt
5/8 X 16 J Anchor Bolt
Engineered for embedding in concrete foundations, the 5/8" x 16" J Anchor Bolt provides a secure anchoring point for structural steel, equipment, and building frames. Its J-shaped hook design ensures superior pull-out resistance, making it an essential component for construction and industrial projects requiring reliable stability.
- Low Carbon Steel
- ASTM A307 Compliant
- 60,000 PSI Minimum
- Concrete Foundation Anchoring
This 5/8 x 16 J Anchor Bolt is manufactured from high-quality low carbon steel, selected for its optimal balance of strength and ductility for anchoring applications. It is designed to meet or exceed the requirements of ASTM A307, the standard specification for carbon steel bolts, ensuring a minimum tensile strength of 60,000 PSI for a dependable anchoring solution. The bolt's manufacturing process creates a precise J-hook, essential for mechanical interlock within poured concrete, preventing rotation and enhancing overall stability for the anchored structure.
Primarily used in new construction and MRO applications, these J anchor bolts are set into wet concrete foundations, footings, and slabs. They serve as the critical connection point for steel columns, machinery bases, light poles, and support posts. The exposed threaded end allows for precise leveling and securing of structures with a nut and washer assembly. Their reliability makes them a preferred choice for general contractors, steel erectors, and fabricators working on commercial and industrial building projects in the Los Angeles area.
Specifications
- Material: Low Carbon Steel
- Standards: ASTM A307
- Strength/Tensile: 60,000 PSI Minimum
- Dimensions: 5/8" Diameter x 16" Length
- Finish: Plain (Uncoated) or Hot-Dip Galvanized (HDG)
- Certifications: Mill Test Reports (MTR) available upon request
Applications
- Construction: Securing structural steel columns, beams, and sill plates to concrete foundations.
- Industrial: Anchoring heavy machinery, equipment skids, and industrial racking to factory floors.
- Infrastructure: Setting light poles, signage, and communication towers.
- Fabrication: Creating secure mounting points for custom-fabricated metal structures and frames.
Target Users
This industrial-grade anchor bolt is essential for general contractors, concrete professionals, steel erectors, and MRO teams who require a reliable method for anchoring structural elements to concrete in commercial and industrial projects.
Finish Options
Our 5/8 x 16 J Anchor Bolts are available in a standard plain (uncoated) finish for interior or protected applications. For superior corrosion resistance in outdoor or harsh environments, a Hot-Dip Galvanized (HDG) coating can be specified.
How to Measure
To specify a J Anchor Bolt, provide the Diameter (D), overall Length (L), Hook Length (H), and Thread Length (T). The overall length is measured from the very end of the threaded portion to the bottom of the J-hook.
Example: 5/8"-11 x 16" J Anchor Bolt, 4" Hook, 3" Thread Length, ASTM A307, Plain Finish.
Order Checklist
- Product name and required dimensions (Diameter, Length, Hook)
- Grade/material specification and quantity
- Cutting instructions (if applicable)
- Surface finish requirements (Plain or Galvanized)
- Certifications required (Mill Test Report - MTR)
- Special handling or delivery requirements
Quick Facts
- Product
- 5/8 X 16 J Anchor Bolt
- Material
- Low Carbon Steel
- Standards
- ASTM A307
- Key Properties
- 60,000 PSI min tensile strength, J-hook design for concrete embedment, excellent stability.
- Primary Applications
- Concrete Foundations, Structural Anchoring, Equipment Mounting
- Location
- Los Angeles warehouse - Same-day pickup available
Available Sizes
We stock a wide range of J anchor bolts in various diameters (1/2" to 1-1/2") and lengths (8" to 36"). Common sizes like the 5/8 x 16 J anchor bolt are part of our warehouse stock in Los Angeles, available for same-day pickup.
Custom sizes and cutting services are available.
