5/8 X 14 J Anchor Bolt
5/8 X 14 J Anchor Bolt

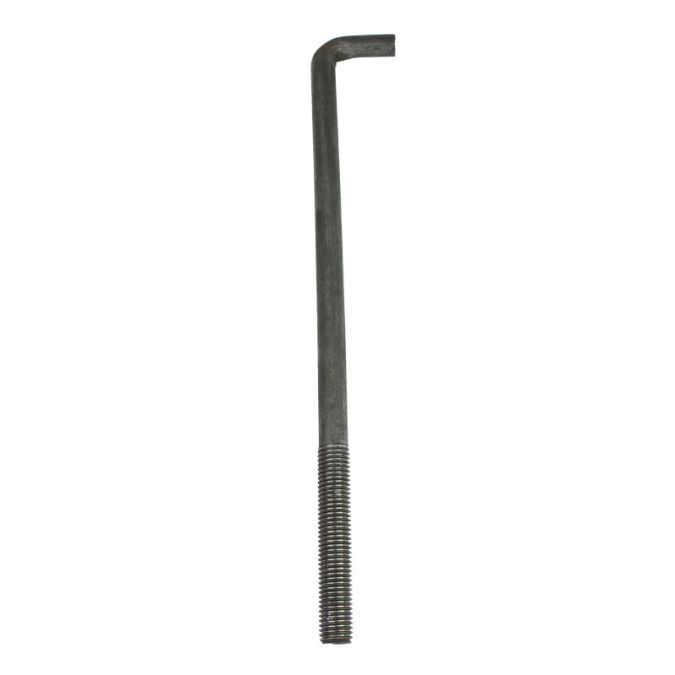

The 5/8 x 14 J Anchor Bolt is a heavy-duty fastener specifically designed to be embedded in concrete foundations. Its distinctive J-shape provides robust mechanical anchorage, making it essential for securing structural steel columns, equipment, and heavy machinery. This industrial-grade bolt ensures a stable and permanent connection for demanding construction and fabrication projects.
- Low Carbon Steel Construction
- Conforms to ASTM A307 Standards
- 60,000 PSI Minimum Tensile Strength
- Application: Concrete Foundation Anchoring
Engineered for strength and durability, our J Anchor Bolts are manufactured from high-quality low carbon steel. This material provides excellent weldability and ductility, ensuring reliable performance under load. These bolts are produced to meet the stringent requirements of the ASTM A307 standard, which governs carbon steel bolts and studs with a minimum tensile strength of 60,000 psi. The precise dimensions, including the 5/8-inch diameter and 14-inch length, make them suitable for a wide range of standard structural designs and foundation depths.
J Anchor Bolts are a critical component in the construction and industrial sectors. They are primarily used to anchor steel support columns, light poles, large equipment, and building frames directly to concrete footings and slabs. The hooked end is embedded into wet concrete, creating a permanent, high-strength anchor point once the concrete cures. This makes them an indispensable part of MRO supplies for structural repairs and new construction projects throughout the Los Angeles area.
Specifications
- Material: Low Carbon Steel
- Standards: ASTM A307
- Strength/Tensile: 60,000 psi minimum
- Dimensions: 5/8" Diameter x 14" Length
- Finish: Plain (Uncoated) or Hot-Dip Galvanized
- Certifications: Mill Test Reports (MTR) available upon request
Applications
- Construction: Securing structural steel columns, building frames, and pre-engineered metal buildings to concrete foundations.
- Industrial: Anchoring heavy machinery, manufacturing equipment, and conveyor systems to factory floors.
- Infrastructure: Setting light poles, signage, guardrails, and communication towers.
- Fabrication: Creating anchor points for custom-fabricated structures, mezzanines, and support brackets.
Target Users
This product is essential for structural engineers, steel erectors, general contractors, and fabrication shops involved in commercial and industrial construction projects.
Finish Options
Our 5/8 x 14 J Anchor Bolts are available in a standard plain (uncoated) finish, suitable for interior applications where corrosion is not a concern. For exterior use or environments with high moisture, we offer a hot-dip galvanized finish (conforming to ASTM A153) for superior corrosion resistance. Contact our Los Angeles team for custom coating options.
How to Measure
To specify a J Anchor Bolt, you need three key measurements: 1) Diameter (the thickness of the bolt shank), 2) Length (the overall length from end to end), and 3) Hook Length (the length of the bent 'J' portion). Ensure you also specify the required grade (e.g., ASTM A307) and finish.
Example: J Anchor Bolt, 5/8" x 14", ASTM A307, Plain Finish
Order Checklist
- Product name and required dimensions (Diameter x Length)
- Grade/material specification and quantity
- Cutting instructions (if applicable)
- Surface finish requirements (Plain or Galvanized)
- Certifications required (Mill Test Report - MTR)
- Special handling or delivery requirements
Quick Facts
- Product
- 5/8 X 14 J Anchor Bolt
- Material
- Low Carbon Steel
- Standards
- ASTM A307
- Key Properties
- 60,000 psi min tensile strength, J-hook design for concrete embedment, industrial-grade fastener.
- Primary Applications
- Foundation Anchoring, Structural Steel, Equipment Mounting
- Location
- Los Angeles warehouse - Same-day pickup available
Available Sizes
We stock a wide range of J anchor bolts in various diameters (from 1/2" to 2") and lengths to meet the needs of any construction project. Our Los Angeles warehouse has common sizes like the 5/8 x 14 J anchor bolt ready for same-day pickup.
Custom sizes and cutting services are available.
Contact for Sizing
