3/8 X 1-7/8 Sleeve Anchor
3/8 X 1-7/8 Sleeve Anchor

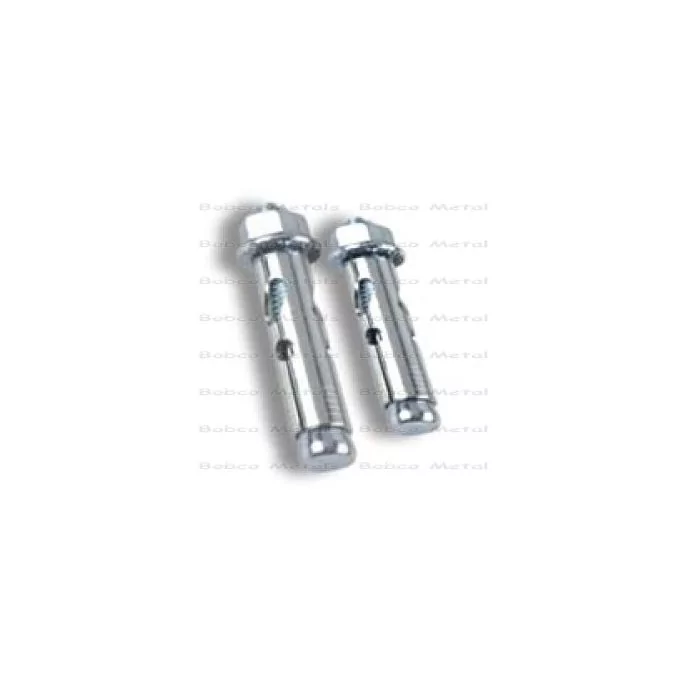

The 3/8 x 1-7/8 Sleeve Anchor is a pre-assembled mechanical expansion anchor designed for reliable fastening into solid concrete, brick, and block. Its key benefit is simple, through-fixture installation, providing a secure hold for medium-duty load applications in construction and industrial MRO projects.
- Medium-Duty Mechanical Anchor
- Zinc-Plated Carbon Steel
- Concrete, Brick & Block
- 3/8" Diameter x 1-7/8" Length
This industrial-grade 3/8 x 1-7/8 Sleeve Anchor is engineered from high-quality carbon steel for strength and durability. The entire assembly, including the body, sleeve, nut, and washer, is zinc-plated to provide effective corrosion resistance in dry, indoor environments. The anchor functions by inserting it into a pre-drilled hole; as the nut is tightened, the tapered cone is pulled into the expansion sleeve, forcing it to flare outwards and engage securely with the base material. This creates a strong, reliable frictional hold suitable for a variety of anchoring tasks.
Ideal for MRO supplies and construction hardware inventories, sleeve anchors are a versatile solution for attaching fixtures to masonry surfaces. They are widely used for mounting electrical conduit, support brackets, light machinery, handrails, and shelving. Because the anchor is pre-assembled and can be installed through the item being fastened, it saves significant time on the job site. This makes it a preferred choice for contractors and maintenance professionals in the Los Angeles area looking for an efficient and dependable masonry fastener.
Specifications
- Material: Carbon Steel
- Standards: Conforms to ANSI/ASME fastener design principles
- Strength/Tensile: Medium-Duty Load Capacity
- Dimensions: Diameter: 3/8", Length: 1-7/8"
- Finish: Zinc Plated (ASTM B633 Type III)
- Certifications: Manufacturer's Certificate of Conformance available upon request
Applications
- Construction: Mounting electrical boxes, conduit straps, and light fixtures to concrete walls.
- Fabrication: Securing steel plates, support brackets, and metal framework to masonry floors.
- MRO: Anchoring machinery guards, shelving units, and safety equipment in industrial facilities.
- Architectural: Installing handrails, signage, and decorative elements on brick or block facades.
Target Users
This product is ideal for general contractors, electricians, fabricators, and maintenance technicians requiring a reliable, easy-to-install anchor for solid masonry. It is a staple item for commercial construction and MRO supply rooms.
Finish Options
The standard finish for our sleeve anchors is a commercial-grade zinc plating, which provides moderate corrosion protection suitable for most interior applications. For projects requiring enhanced weather or corrosion resistance, other options such as hot-dip galvanized or stainless steel sleeve anchors may be available via special order.
How to Measure
Sleeve anchors are specified by their diameter and overall length. The diameter (e.g., 3/8") indicates the size of the anchor body and corresponds to the required drill bit size for the hole. The length (e.g., 1-7/8") is measured from the end of the sleeve to the end of the bolt.
Example: 3/8" (Diameter) x 1-7/8" (Length) Sleeve Anchor, Zinc Plated.
Order Checklist
- Product name and required dimensions (e.g., 3/8" x 1-7/8")
- Material specification and quantity needed (boxes or individual units)
- Base material (e.g., concrete, hollow block) to ensure suitability
- Surface finish requirements (standard zinc or other)
- Certifications required (if any)
- Special handling or delivery requirements for Los Angeles job site
Quick Facts
- Product
- 3/8 X 1-7/8 Sleeve Anchor
- Material
- Zinc-Plated Carbon Steel
- Standards
- ANSI/ASME Compliant Design
- Key Properties
- Pre-assembled mechanical anchor for medium-duty loads in concrete, brick, and block. Easy installation.
- Primary Applications
- Construction, MRO, Fabrication, Anchoring
- Location
- Los Angeles warehouse - Same-day pickup available
Available Sizes
We stock a wide range of sleeve anchor diameters from 1/4" to 3/4" and lengths to accommodate various material thicknesses. This 3/8 X 1-7/8 size is a common choice for many applications. Bulk sleeve anchor quantities are available from our Los Angeles warehouse.
Custom sizes and cutting services are available.
