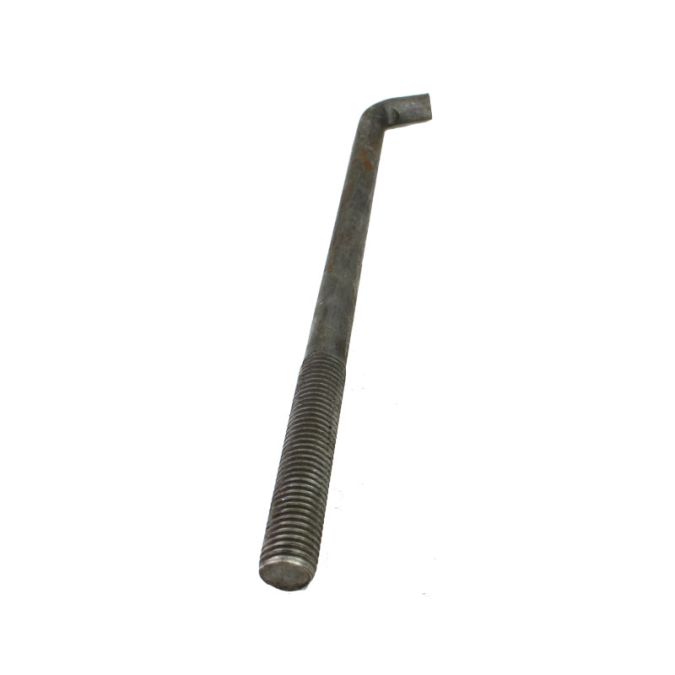

3/4 X 16 J Anchor Bolt
3/4 X 16 J Anchor Bolt
Engineered for securing structural elements to concrete foundations, the 3/4 x 16 J Anchor Bolt provides reliable anchoring for commercial and industrial construction. Its J-shaped bend offers superior pull-out resistance, making it ideal for fastening sole plates, columns, and equipment.
- Low Carbon Steel Construction
- Meets ASTM A307 Standard
- 60,000 PSI Minimum Tensile Strength
- Ideal for Concrete Foundations
This 3/4 x 16 J Anchor Bolt is manufactured from high-quality, low carbon steel, ensuring dependable performance for light to medium-duty applications. It is produced to meet the stringent requirements of the ASTM A307 standard, which specifies a minimum tensile strength of 60,000 psi. The precise J-bend is engineered to create a mechanical lock within poured concrete, providing a secure and permanent anchor point for structural connections. Its robust design makes it a staple in industrial construction hardware.
Primarily used in construction and MRO projects, these J anchor bolts are essential for anchoring steel columns, signposts, light poles, and heavy equipment to concrete slabs or foundations. The 16-inch length provides significant embedment depth for enhanced stability and load-bearing capacity. Sourced for our Los Angeles warehouse, these industrial-grade 3/4 X 16 J Anchor Bolt units are readily available for same-day pickup, supporting fast-paced fabrication and construction schedules.
Specifications
- Material: Low Carbon Steel
- Standards: ASTM A307 (Grade A)
- Strength/Tensile: 60,000 psi minimum
- Dimensions: 3/4" Diameter x 16" Length
- Finish: Plain (Uncoated), Hot-Dip Galvanized (optional)
- Certifications: Mill Test Reports (MTR) available upon request
Applications
- Construction: Securing sole plates, sill plates, and framing to concrete foundations.
- Structural Steel: Anchoring columns, beams, and support posts in industrial buildings.
- Site Work: Fastening light poles, signage, and protective bollards to footings.
- Equipment Mounting: Securing heavy machinery and industrial equipment to concrete floors.
Target Users
This product is essential for general contractors, steel erectors, concrete contractors, and MRO technicians. It is specified for projects requiring a reliable, embedded anchor for structural and non-structural connections in commercial and industrial settings.
Finish Options
Our 3/4 x 16 J Anchor Bolts are typically supplied with a plain, uncoated finish. For applications requiring enhanced corrosion resistance, especially in outdoor or high-moisture environments, a hot-dip galvanized (HDG) finish is available upon request.
How to Measure
To specify a J Anchor Bolt, provide the Diameter (D), Length (L), and Hook Length (H). The diameter is the thickness of the bolt shank. The length is measured from the end of the straight shank to the inside of the bend. The hook length is the measurement of the bent portion.
Example: 3/4" (D) x 16" (L) x 4" (H) J Anchor Bolt, ASTM A307, Plain Finish.
Order Checklist
- Product name and required dimensions (Diameter x Length)
- Grade/material specification (ASTM A307) and quantity
- Hook dimension (if non-standard)
- Surface finish requirements (Plain or Galvanized)
- Certifications required (Mill Test Report - MTR)
- Special handling or delivery requirements
Quick Facts
- Product
- 3/4 X 16 J Anchor Bolt
- Material
- Low Carbon Steel
- Standards
- ASTM A307
- Key Properties
- 60,000 psi min tensile strength, J-hook for concrete embedment, ideal for structural anchoring.
- Primary Applications
- Concrete Foundations, Structural Steel, Equipment Mounting
- Location
- Los Angeles warehouse - Same-day pickup available
Available Sizes
We stock a wide range of J anchor bolts in various diameters and lengths, including common sizes for immediate pickup at our Los Angeles warehouse. Standard diameters range from 1/2" to 1-1/2".
Custom sizes and cutting services are available.
