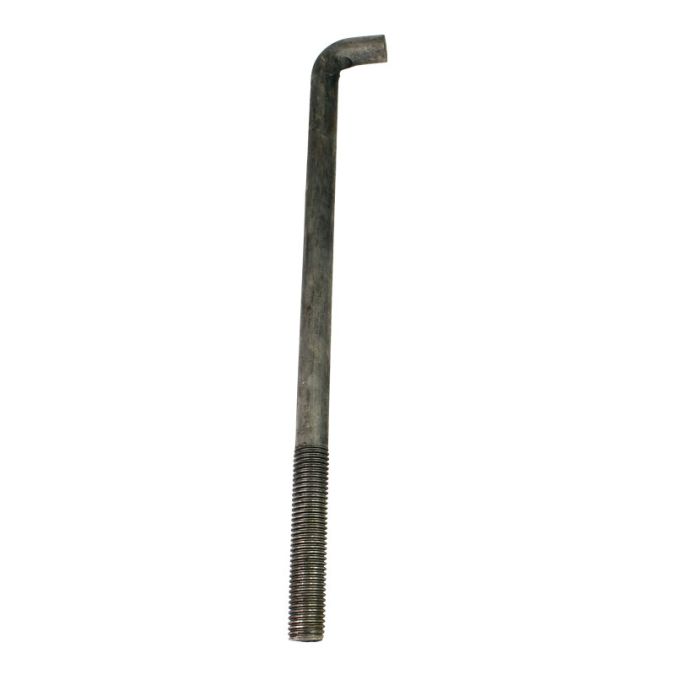

3/4 X 14 J Anchor Bolt
3/4 X 14 J Anchor Bolt
The 3/4 x 14 J Anchor Bolt is an essential industrial fastener designed for embedding in concrete foundations to secure structural steel, equipment, and building frames. Its distinctive 'J' shape provides a robust mechanical anchor, ensuring superior pull-out resistance and stability. Manufactured for reliability, these bolts are a cornerstone of construction and MRO projects requiring a permanent, secure connection to concrete slabs or footings.
- ASTM A307 Compliant
- Low Carbon Steel
- 60,000 PSI Minimum
- Concrete Foundation Anchoring
Our 3/4 x 14 J Anchor Bolts are manufactured from high-quality low carbon steel, conforming to the rigorous requirements of the ASTM A307 standard. This specification ensures a minimum tensile strength of 60,000 psi, providing dependable load-bearing capacity for light to medium-duty applications. The 'J' bend is engineered to create a secure hook when embedded in wet concrete, creating a permanent anchor point once cured. These bolts are a reliable choice for projects where strength, durability, and code compliance are critical for foundational work.
Primarily used in new construction and major MRO projects, J anchor bolts are indispensable for securing steel columns, light poles, heavy machinery, and support posts to concrete foundations. Their simple yet effective design makes them ideal for fabricators and contractors in the Los Angeles area working on commercial buildings, industrial facilities, and infrastructure projects. They serve as the critical link between the structural frame and its concrete base, ensuring long-term stability and structural integrity against shear and tension forces.
Specifications
- Material: Low Carbon Steel
- Standards: ASTM A307
- Strength/Tensile: 60,000 psi minimum
- Dimensions: Diameter: 3/4 inch, Length: 14 inches
- Finish: Plain (Uncoated), Hot-Dip Galvanized (HDG), or Zinc-Plated
- Certifications: Mill Test Reports (MTRs) available upon request
Applications
- Structural Steel: Securing base plates of columns and beams to concrete footings.
- Equipment Mounting: Anchoring heavy machinery, industrial equipment, and pump skids to factory floors.
- Construction: Fastening support posts for signage, light poles, and pre-engineered metal buildings.
- Infrastructure: Used in the foundation work for bridges, barriers, and communication towers.
Target Users
Ideal for steel erectors, general contractors, concrete specialists, and MRO teams requiring reliable industrial-grade concrete anchors for construction and fabrication projects.
Finish Options
Our 3/4 x 14 J Anchor Bolts are available in several finishes to meet specific environmental and project requirements. Standard options include plain/black (uncoated) for interior applications, zinc-plated for moderate corrosion resistance, and hot-dip galvanized (HDG) for superior protection in outdoor or corrosive environments.
How to Measure
To specify a J Anchor Bolt, provide the Diameter (D), overall Length (L), and the Hook length (H). The length is measured from the end of the straight shank to the inside of the 'J' bend. Ensure you account for the required embedment depth in the concrete and the necessary thread projection above the surface.
Example: 3/4" (D) x 14" (L) J Anchor Bolt, ASTM A307, Hot-Dip Galvanized Finish, Quantity: 100.
Order Checklist
- Product name and required dimensions (Diameter x Length)
- Grade/material specification and quantity (ASTM A307)
- Nuts and washers if required
- Surface finish requirements (Plain, Zinc, or Galvanized)
- Certifications required (Mill Test Report - MTR)
- Special handling or delivery requirements
Quick Facts
- Product
- 3/4 X 14 J Anchor Bolt
- Material
- Low Carbon Steel
- Standards
- ASTM A307
- Key Properties
- 60,000 psi min tensile strength, J-hook for concrete embedment, durable construction.
- Primary Applications
- Concrete Foundations, Structural Anchoring, Equipment Mounting
- Location
- Los Angeles warehouse - Same-day pickup available
Available Sizes
We stock J Anchor Bolts in a wide range of common diameters (e.g., 1/2", 5/8", 3/4", 1") and lengths to meet the demands of Los Angeles construction and industrial projects. Nuts and washers are also available to complete your assembly.
Custom sizes and cutting services are available.
