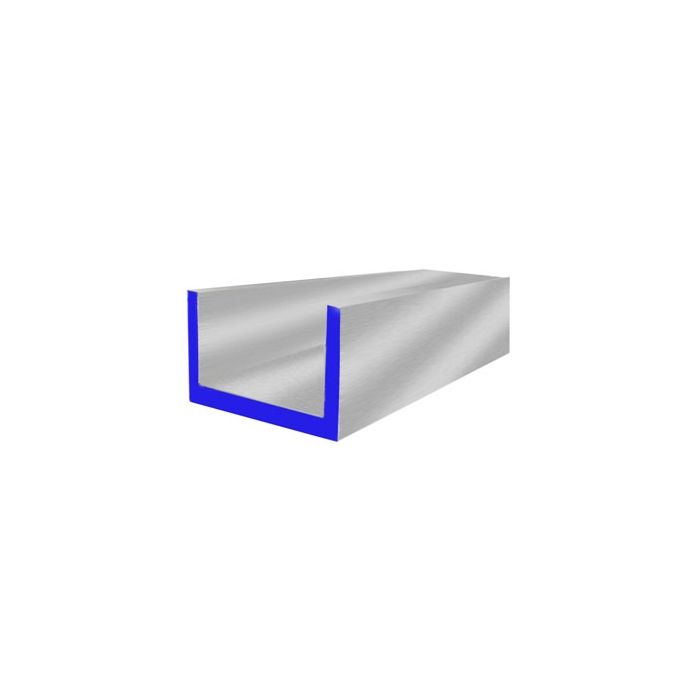

6061 Standard Aluminum Channel - 6 Inch
6061 Aluminum Channel - 6" x 1.92" x 0.200" x 144"
This 6" x 1.92" x 0.200" 6061 Aluminum Channel is a versatile structural extrusion conforming to ASTM B308. It delivers an excellent strength-to-weight ratio with 45,000 PSI tensile strength, superior corrosion resistance, and excellent weldability, ideal for structural framing. In stock Los Angeles.
- 6061-T6 Aluminum Construction
- ASTM B308 Certified
- 45,000 PSI Tensile Strength
- Excellent Weldability & Corrosion Resistance
6061-T6 aluminum channel is a structural extrusion made from a heat-treatable alloy of magnesium and silicon, ensuring high strength and excellent corrosion resistance. Conforming to ASTM B308, its T6 temper is achieved through solution heat treatment and artificial aging. The C-shaped profile provides rigidity, making it a reliable choice for load-bearing applications where weight is a concern.
As a large profile, this 6" channel is specified for heavy structural applications, building frames, industrial supports, and equipment bases. Its combination of width and strength allows it to serve as a primary support member in machinery, conveyor systems, and large-scale architectural projects.
Specifications
- Material: 6061-T6 Aluminum
- Standards: ASTM B308
- Strength/Tensile: 45,000 PSI
- Dimensions: 6" Width x 1.92" Height x 0.200" Thickness x 144" Length
- Finish: T6 Temper (Mill Finish)
- Certifications: Mill Test Report (MTR) Available
Applications
- Industrial Framing: Heavy equipment bases and machinery supports - high strength-to-weight ratio.
- Structural: Building frames and industrial supports - large profile handles significant loads.
- Transportation: Trailer and truck bed framework - combines strength with light weight for fuel efficiency.
- Marine: Dock framework and boat lifts - superior resistance to saltwater corrosion.
Target Users
Fabricators, construction engineers, and machine builders rely on 6061 channel for durable, lightweight structural components in industrial and architectural projects throughout the Los Angeles area.
Finish Options
This product comes standard with a T6 temper mill finish, characterized by a semi-smooth, matte surface. It is an excellent substrate for painting, powder coating, or anodizing for enhanced protection or aesthetic appeal. Contact our Los Angeles sales team for custom finish inquiries.
How to Measure
Channel is measured by its width (B - the longest outer dimension of the flat back), height (A - the outer dimension of the legs), and web thickness (C).
Example: To order this channel, specify "6061 Aluminum Channel, 6" wide x 1.92" high x 0.200" thick".
Order Checklist
- Product name and required dimensions (6" x 1.92" x 0.200" x 144")
- Material specification and quantity
- Confirm grade (6061-T6) meets requirements
- Surface finish requirements (T6 Mill Finish)
- Certifications required (Mill Test Report)
- Special handling or delivery requirements
Quick Facts
- Product
- 6061 Standard Aluminum Channel - 6 Inch
- Material
- 6061-T6 Aluminum
- Standards
- ASTM B308
- Key Properties
- 45,000 PSI tensile, Excellent Weldability, Excellent Corrosion Resistance
- Primary Applications
- Structural Framing, Equipment Bases, Industrial Supports
- Location
- Los Angeles warehouse - Same-day pickup available
Available Sizes
We stock 6061 Aluminum Channel in widths from 3" to 6" and standard 144" lengths. This 6" x 1.92" size is available for immediate pickup in Los Angeles.
Custom cutting services available.
Contact for Sizing
