5/8 X 18 J ANCHOR BOLT
- Buy 20 or more $5.63 Save 10%
- Buy 50 or more $5.06 Save 19%
- Buy 100 or more $4.56 Save 27%

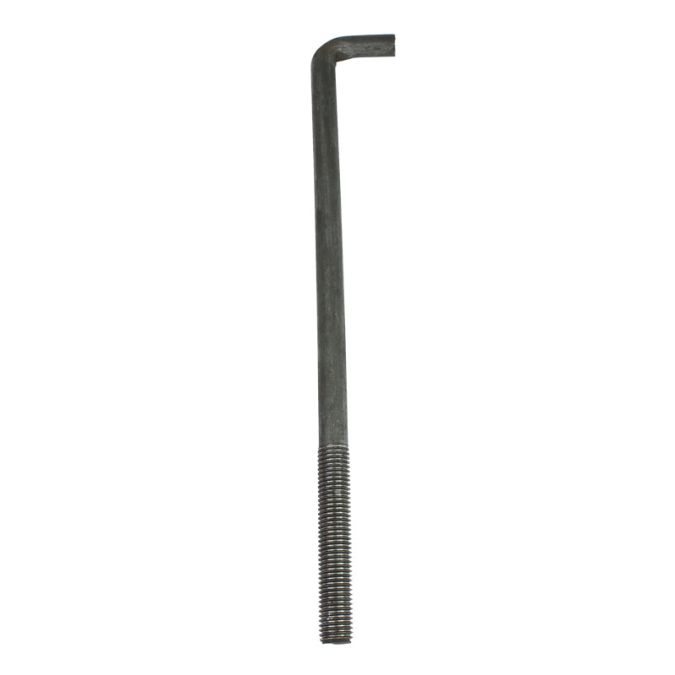

5/8 X 18 J Anchor Bolt
Engineered for embedding in concrete foundations, the 5/8 x 18 J Anchor Bolt provides a secure and reliable anchor point for structural steel, equipment, and framing. Its distinctive J-shape creates a strong mechanical lock within the concrete, offering excellent pull-out resistance for light to medium-duty applications.
- Low Carbon Steel Material
- ASTM A307 / SAE J429 Compliant
- 60,000 psi Minimum Tensile Strength
- Application: Concrete Foundation Anchoring
Our 5/8 x 18 J Anchor Bolt is manufactured from high-quality low carbon steel, conforming to the rigorous specifications of ASTM A307 and SAE J429 standards. This ensures consistent mechanical properties, including a minimum tensile strength of 60,000 psi for dependable load-bearing capacity. The J-hook design is fundamental to its function, providing superior anchorage when cast in place in wet concrete. These bolts are an essential component in construction, offering a cost-effective and proven solution for securing base plates, columns, and machinery.
As a foundational piece of construction hardware, these anchor bolts are used extensively across commercial and industrial projects in the Los Angeles area. They are ideal for securing structural steel frames, light poles, signage, and heavy equipment to concrete slabs and footings. For MRO applications, they serve as reliable replacement anchors for machinery or structural repairs. Their straightforward design and robust performance make them a staple for general contractors, steel erectors, and fabricators requiring a secure connection to a concrete substrate.
Specifications
- Material: Low Carbon Steel
- Standards: ASTM A307, SAE J429
- Strength/Tensile: 60,000 psi minimum
- Dimensions: 5/8" Diameter x 18" Overall Length
- Finish: Plain (Uncoated), Hot-Dip Galvanized (HDG)
- Certifications: Mill Test Reports (MTRs) available upon request
Applications
- Construction: Securing sill plates, support columns, and structural steel to concrete foundations.
- Infrastructure: Anchoring light poles, highway signage, and guard rails to concrete footings.
- Industrial MRO: Mounting heavy machinery, conveyor systems, and equipment racks to concrete floors.
- Fabrication: Attaching pre-fabricated steel structures, staircases, and platforms to concrete bases.
Target Users
This product is essential for general contractors, steel erectors, concrete formers, and industrial maintenance crews. It is a critical fastener for any project requiring the secure attachment of steel components to concrete foundations.
Finish Options
Our J Anchor Bolts are available in multiple finishes to suit different environmental conditions. A 'Plain' or 'Black' finish is standard for interior applications where corrosion is not a concern. For exterior use or exposure to moisture, a Hot-Dip Galvanized (HDG) coating provides a thick, durable layer of zinc for superior corrosion protection.
How to Measure
To specify a J Anchor Bolt, provide the following dimensions: Diameter, overall length, hook length (from the inside of the bolt to the end of the hook), and thread length. Ensure you also specify the material grade and required finish.
Example: 5/8"-11 x 18" J Anchor Bolt, ASTM A307, Hot-Dip Galvanized.
Order Checklist
- Product name and required dimensions (Diameter x Length)
- Grade/material specification and quantity (ASTM A307)
- Cutting instructions (if applicable)
- Surface finish requirements (Plain or Galvanized)
- Certifications required (Mill Test Report - MTR)
- Special handling or delivery requirements
Quick Facts
- Product
- 5/8 X 18 J Anchor Bolt
- Material
- Low Carbon Steel
- Standards
- ASTM A307, SAE J429
- Key Properties
- 60,000 psi min tensile strength; J-hook design for superior concrete anchorage.
- Primary Applications
- Structural Framing, Equipment Mounting
- Location
- Los Angeles warehouse - Same-day pickup available
Available Sizes
We stock J Anchor Bolts in a wide range of standard diameters (from 1/2" to 1-1/2") and lengths to meet the demands of any construction project. This 5/8 x 18 size is readily available from our Los Angeles warehouse stock.
Custom sizes and cutting services are available.
Contact for Sizing
